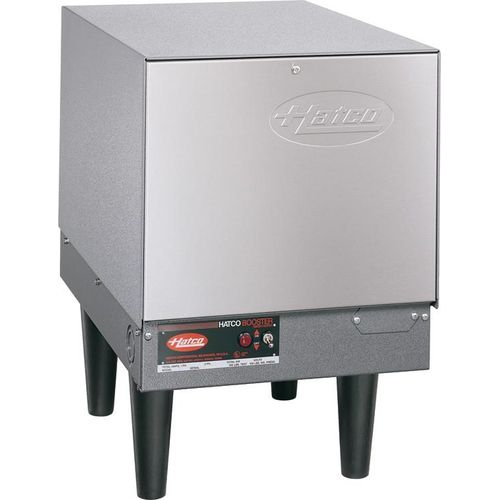

Hatco Compact Water Booster, C-6, Three Phase, 6 kW, 208 or 240 Volts - Voltage: 208 V Mounting: 6i Legs

$2,686.26
Market Price
Returnability Restrictions
Restrictions
Voltage
Currently ships in 10 days
Qty
Each
Questions about this product?

Description

Product #
3VW04
Brand / Manufacturer
Hatco Corporation
Manufacturer Model #
C-6

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-kW, stainless steel front panel, powder-coated silver-gray hammertone body, 6” plastic non-adjustable legs, Castone® lined tank, NSF, cULus, Made in USA. All models include a Castone® lined tank with a 10-year limited warranty • Features include a temperature/pressure relief valve, a pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, pilot indicator light, on-off switch, a low-water cut-off to prevent element burnout due to a low water condition, and a 3/4” NPT pipe and fittings for inlet and outlet. • Available with slide brackets for mounting under a dishtable • Each booster has fiberglass insulation to minimize heat loss • Hatco electric booster heaters are factory pre-plumbed and pre-wired with calibrated immersion thermostat and hightemperature limit switch • A stainless steel front panel and powder-coated silver-gray hammertone body is standard on all Compact models • Swing-away front panels with low-water cut-off, control fuses and transformer allow quick access to probes and elements for easier serviceability

Specifications

Returnable
Yes - Restrictions or Fees May Apply
Capacity
6 gal (US)
Contains Forever Chemicals
No
Warranty
1-year parts & labor
Usage
Medium Duty
Warranty
10-year tank
Certifications And Listings
NSF
Certifications And Listings
UL
Certifications And Listings
CSA
Legs Included
Yes
Height
13 3⁄4 in
Width
13 in
Length
20 3⁄4 in
Flow Rate
60 l/min
Temperature Range
0 F-180 F
Gauge
Two Temperature/Pressure Gauges
Mounting
6i Legs
Kilowatts
6 kW
Voltage
208 V
Phase
Three
CA Prop 65 Warning
Does not apply
For professional use only?
Yes
Prescription Required
No
