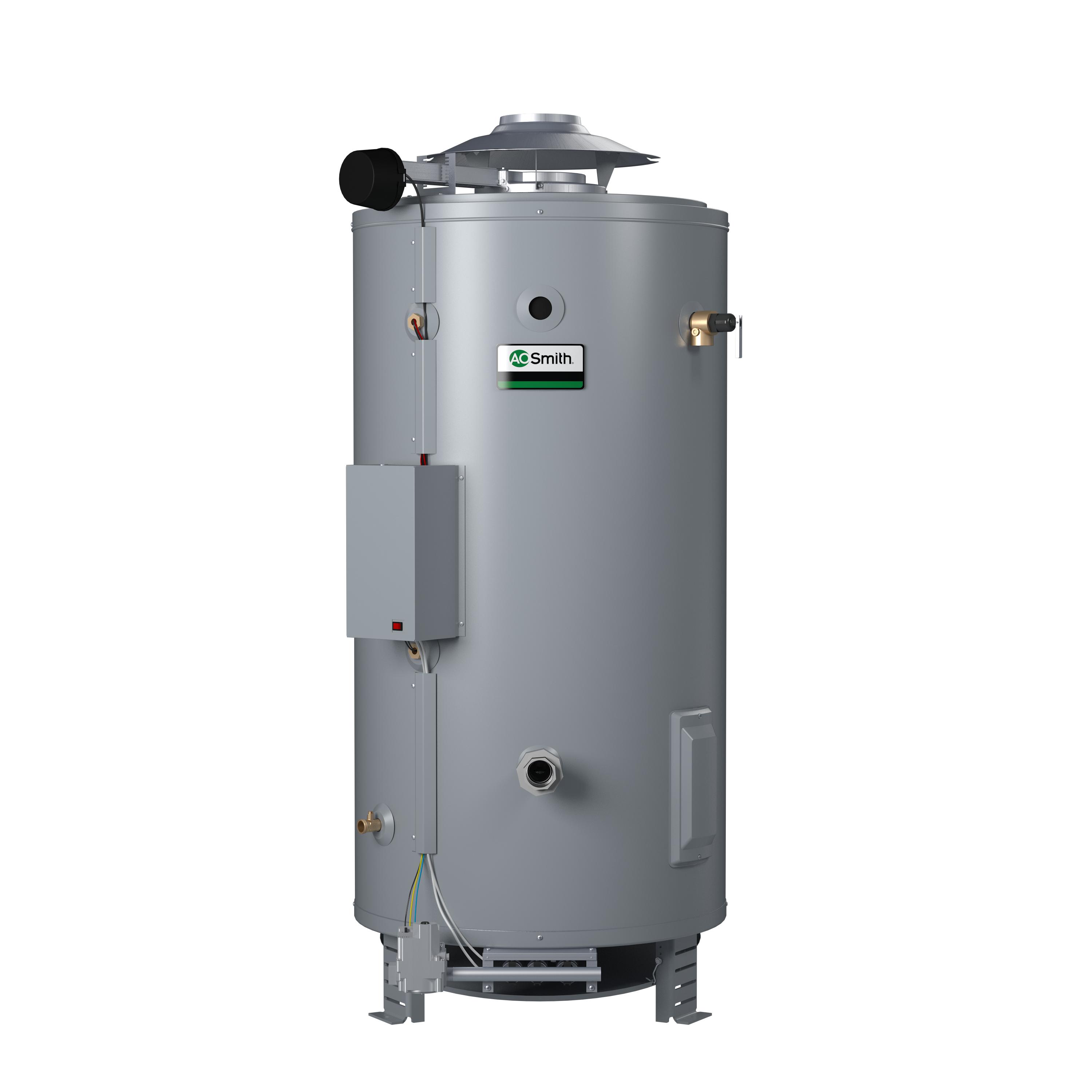

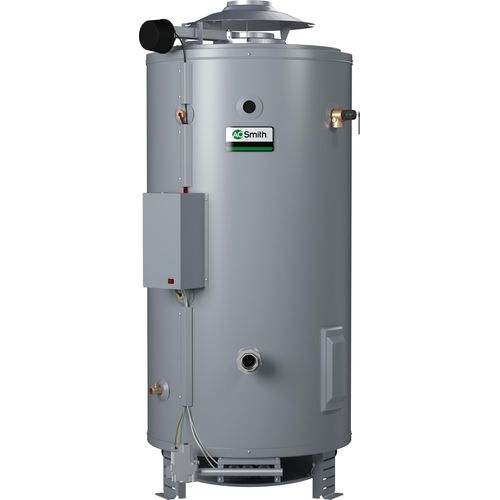

LOCAL AO Smith Master-Fit® BTR Series Water Heater, LP Gas, Not ASME, Altitude up to 2,000 feet, 390K BTU, 100 Gallon

Effikal automatic flue damper minimizes standby heat loss to achieve 80% thermal efficiency
Inlet/outlet connections located top, front and rear for greater installation flexibility
Space-saving units are up to one foot shorter than models they replace
Installs standalone, manifolded or connected to storage tanks

• Low-profile draft diverter helps for installation in tight spaces
• Automatic motorized flue damper helps minimize standby heat loss

THREE WATER CONNECTION OPTIONS FOR ADDED FLEXIBILITY
• Hot and cold water connections can be made through front, top or back of unit
• Eliminator™ system operates when cold water is connected through front

• Design-certified by UL (Underwriters Laboratories), according to ANSI Z.21.10.3 – CSA 4.3 standards governing storage-type water heaters
• Meets the thermal efficiency and standby loss requirements of the U. S. Department of Energy and current edition of ASHRAE/IESNA 90.1
• Design-certified by Underwriters Laboratories Sanitation to NSF Standard 5 for 180°F (82°C) water

MAXIMUM HYDROSTATIC WORKING PRESSURE: 160 PSI

• Designed to significantly reduce or eliminate sediment build-up inside the tank
• Reduced sediment build-up maintains rated thermal efficiency and reduces water heating costs
• Self-cleaning system maximizes tank life
