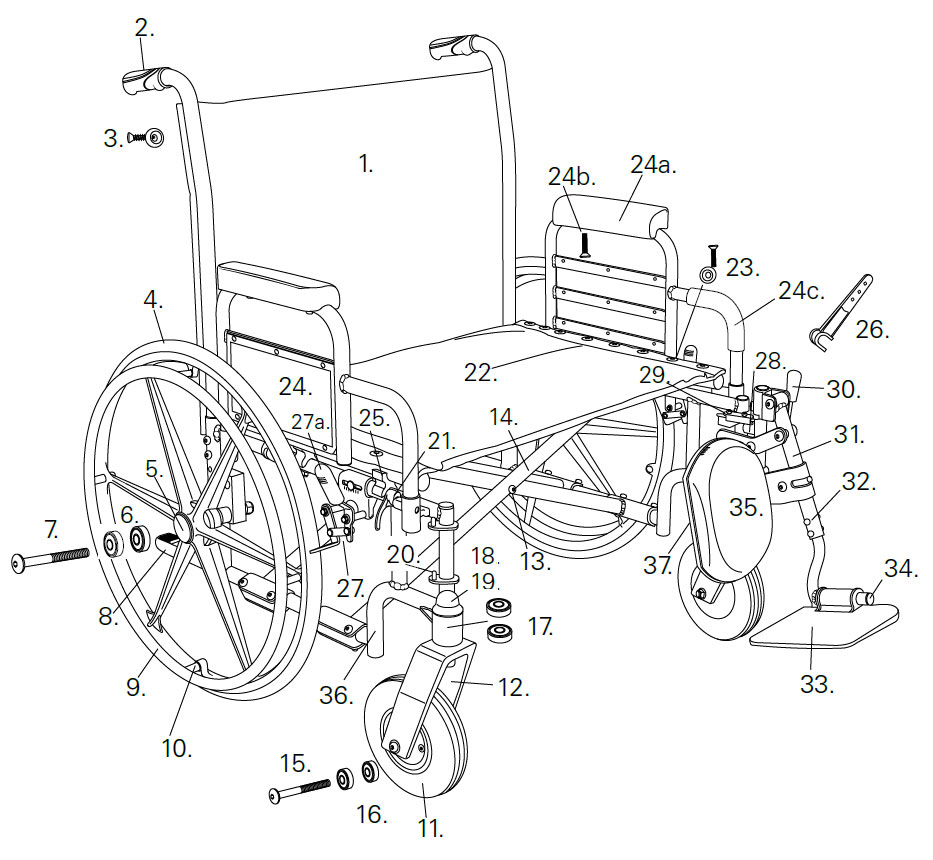

Panacea^® Bariatric Wheelchair
(Mag Wheels)
Replacement Parts List

Frame

• 2. #A2638 Handgrip
• 8. #A2637 Tipping Sleeve
• 13. #A2635 Cross Brace Bolt
• 14. #B0183 Cross Frame, 26"
• 14. #B0184 Cross Frame, 28"
• 14. #B0185 Cross Frame, 30"
• 25. #B0186 Seat Rail Saddle
• 26. #B0187 Cross Frame Assist, 26"
• 26. #B0188 Cross Frame Assist, 28"
• 26. #B0189 Cross Frame Assist, 30"
• 28. #B0190 Frame Bumper
• 36. #B0191 Side Frame, Right
• 36. #B0192 Side Frame, Left

Upholstery

• 1. #B0158 Back Upholstery, 26"
• 1. #B0159 Back Upholstery, 28"
• 1. #B0160 Back Upholstery, 30"
• 3. #B0161 Upholstery Screws
• 22. #B0162 Seat Upholstery, 26"
• 22. #B0163 Seat Upholstery, 28"
• 22. #B0164 Seat Upholstery, 30"
• 23. #B0161 Upholstery Screws

Armrest

• 21. #B0193 Arm Release Lever
• 24. #B0194 Desk Arm Assembly, Right
• 24. #B0195 Desk Arm Assembly, Left
• 24. #B0196 Full Arm Assembly, Right
  (not pictured)
• 24. #B0197 Full Arm Assembly, Left
  (not pictured)
• 24a. #B0198 Armrest Pad, Desk Length
• 24a. #B0199 Armrest Pad, Full Length
  (not pictured)
• 24b. #B0200 Armrest Pad Bolts
• 24c. #B0201 Armrest Pad Foam

Footrest

• 29. #B0202 Release Latch, Right
• 29. #B0203 Release Latch, Left
• 30. #B0204 ELR Adjustment Lever, Right
• 30. #B0205 ELR Adjustment Lever, Left
• 31. #B0206 ELR Hanger Assembly, Right
• 31. #B0207 ELR Hanger Assembly, Left
• 32. #B0208 ELR Height Adjustment Bolt
• 33. #B0209 Footplate, Right
• 33. #B0210 Footplate, Left
• 33. #B0211 Footplate with Heel Loop, Right
  (not pictured)
• 33. #B0212 Footplate with Heel Loop, Left
  (not pictured)
• 34. #B0213 Footrest Bumper
• 35. #B0214 Calf Pad, Nylon Black
• 37. #B0215 Calf Pad Mounting Plate &
  Allen Screw

Wheel

• 4. #B0165 Wheel Assembly
• 5. #B0166 Rear Hub Cap
• 6. #B0168 Rear Wheel Bearing
• 7. #B0167 Rear Axle Bolt & Nut
• 9. #B0178 Handrail
• 10. #B0179 Handrail Screw & Spacer
• 11. #B0180 Caster & Fork
• 11. #B0181 Caster Only
• 12. #B0182 Fork Only
• 15. #B0169 Front Axle Bolt & Nut
• 16. #B0170 Front Caster Bearings
• 17. #B0171 Fork Stem Bearings
• 18. #B0172 Lock Nut For Fork
• 19. #B0173 Dust Cap For Fork
• 20. #B0174 Hanger Pins
• 27. #B0175 Brake Assembly, Right
• 27. #B0176 Brake Assembly, Left
• 27a. #B0177 Rubber Brake Tip
